Ceramic for Other Applications
Kyocera's extrusion-molded ceramics are available with high-precision machining to meet diverse customer needs. Please contact us to discuss your custom requirements.

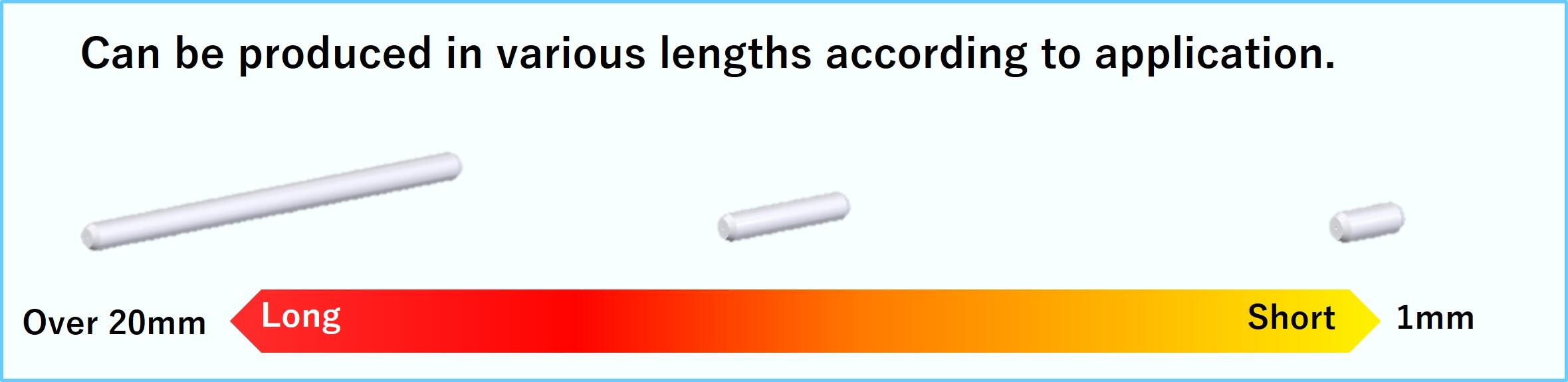

Sleeve/Ferrule Features
Examples

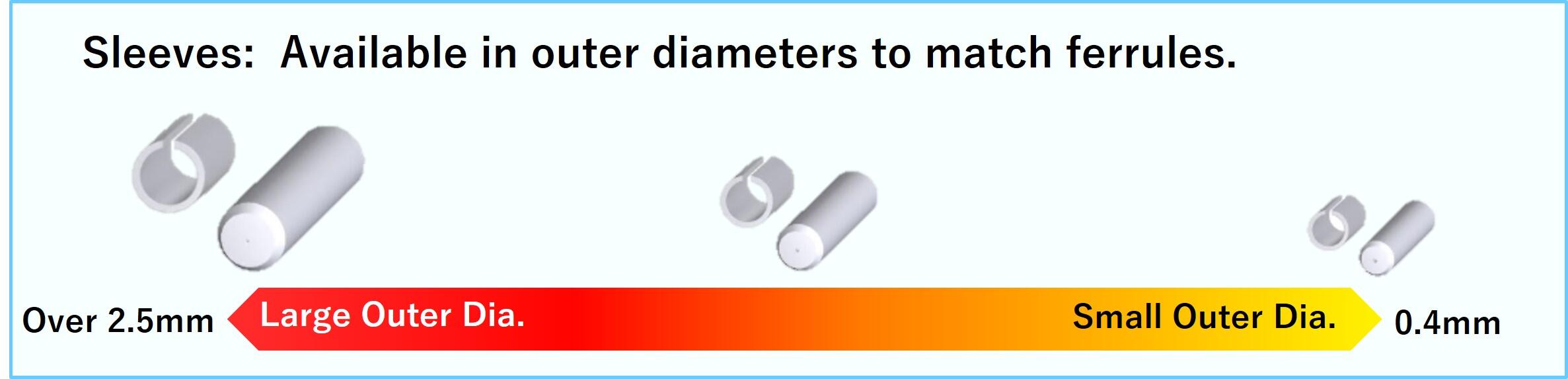

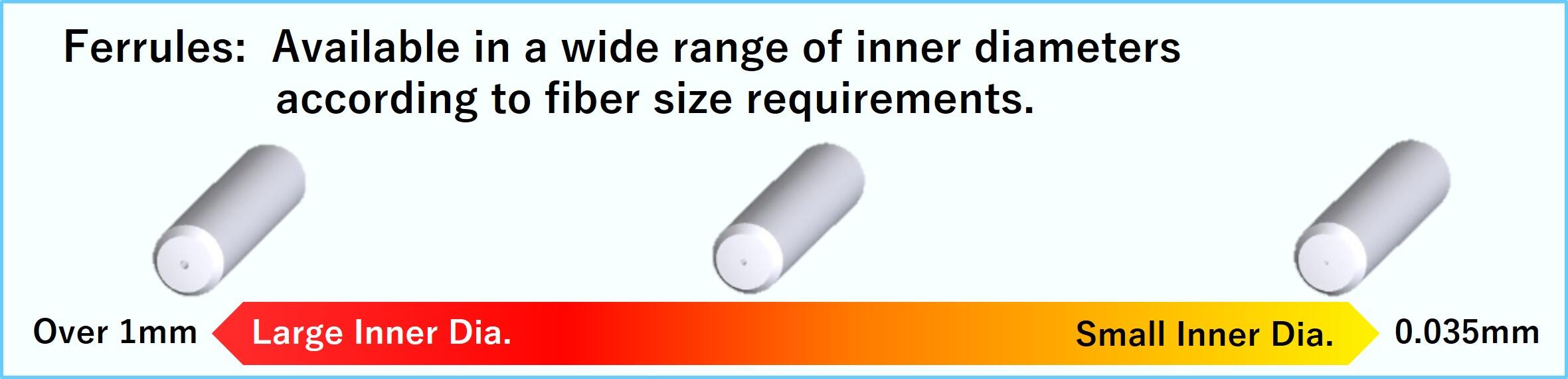

Ferrules/Sleeves
Available in white or black ceramics
Available in white or black ceramics

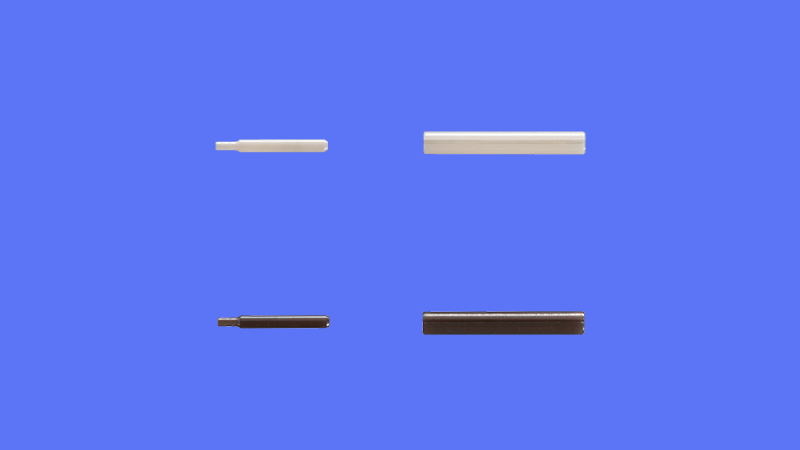

Nozzles
(ex. Tip Section outer dia. 0.16mm, inner dia. 0.126mm)
(ex. Tip Section outer dia. 0.16mm, inner dia. 0.126mm)

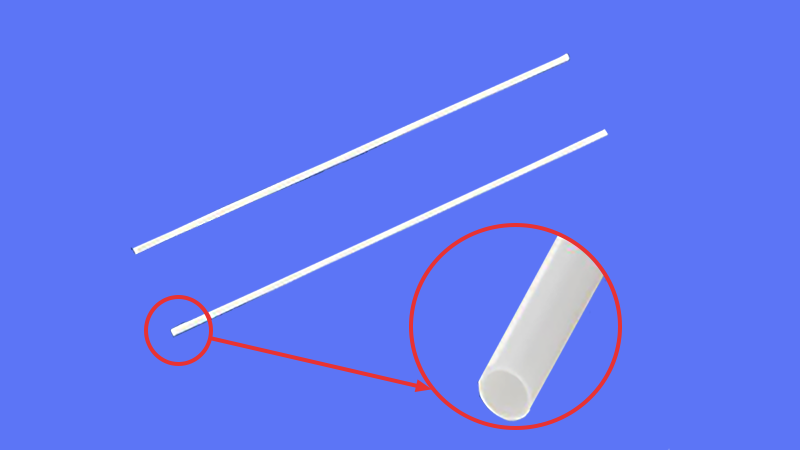

Long Pipes
(outer dia. 0.6mm, inner dia. 0.47mm, length 40mm)
(outer dia. 0.6mm, inner dia. 0.47mm, length 40mm)

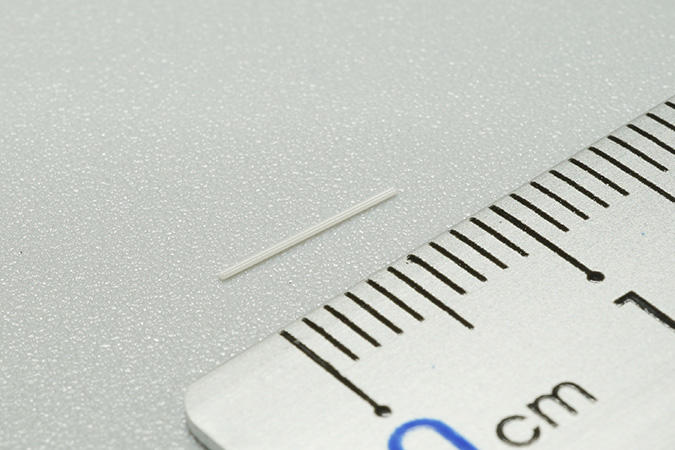

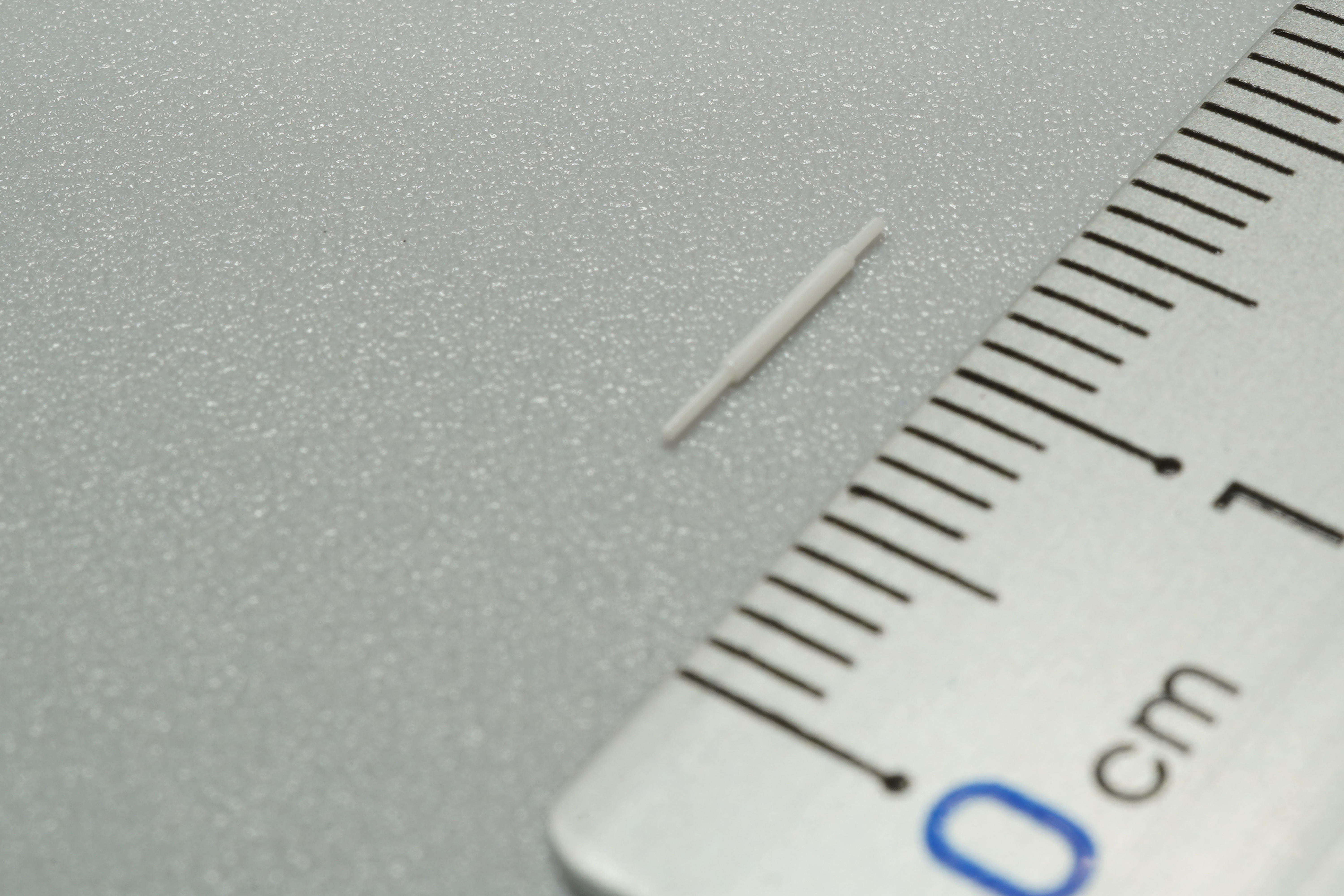

Ferrule
(outer dia. 0.35mm, inner dia. 0.15mm, length 8mm)
(outer dia. 0.35mm, inner dia. 0.15mm, length 8mm)

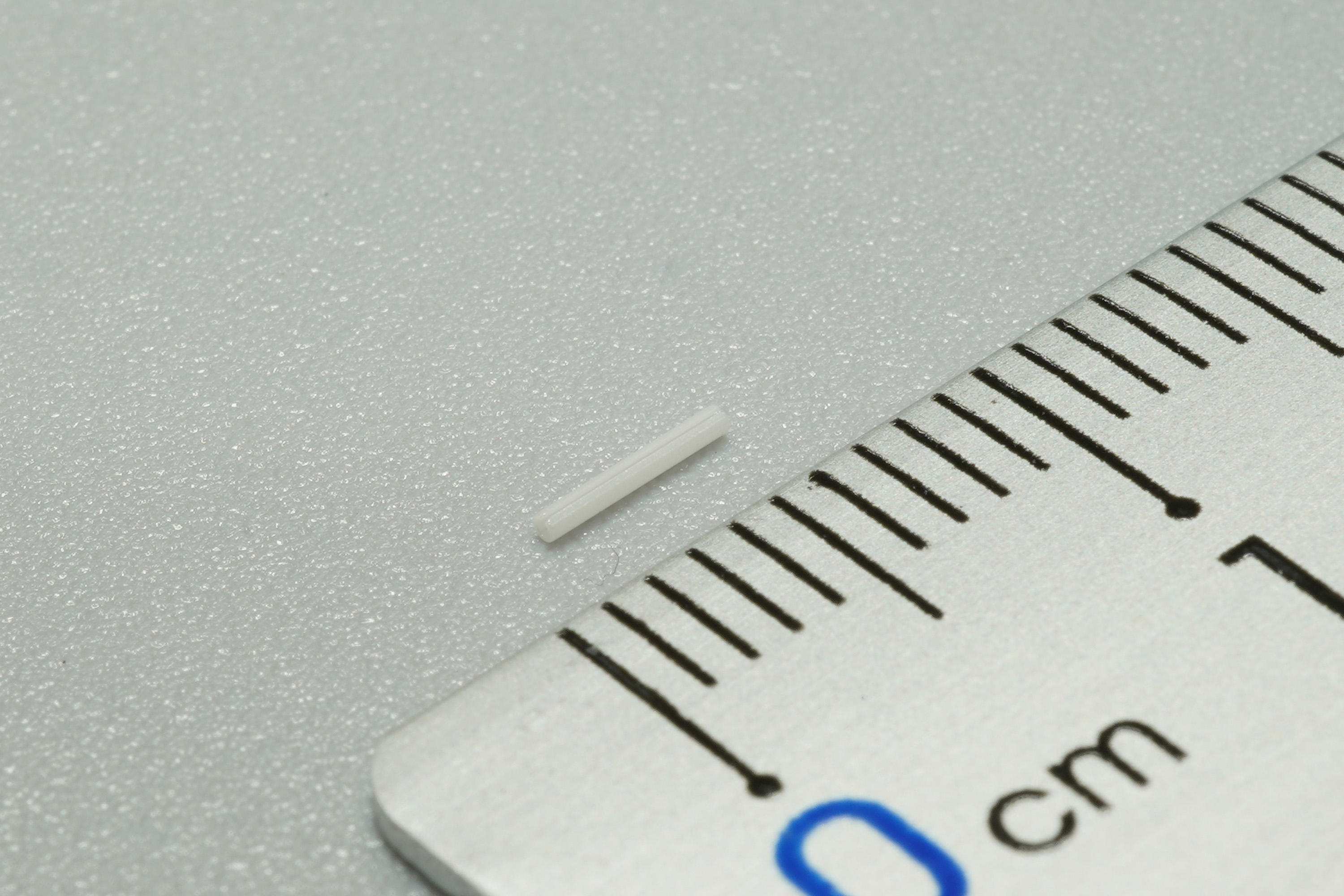

Sleeve
(outer dia. 0.6mm, inner dia. 0.35mm, length 4.3mm)
(outer dia. 0.6mm, inner dia. 0.35mm, length 4.3mm)

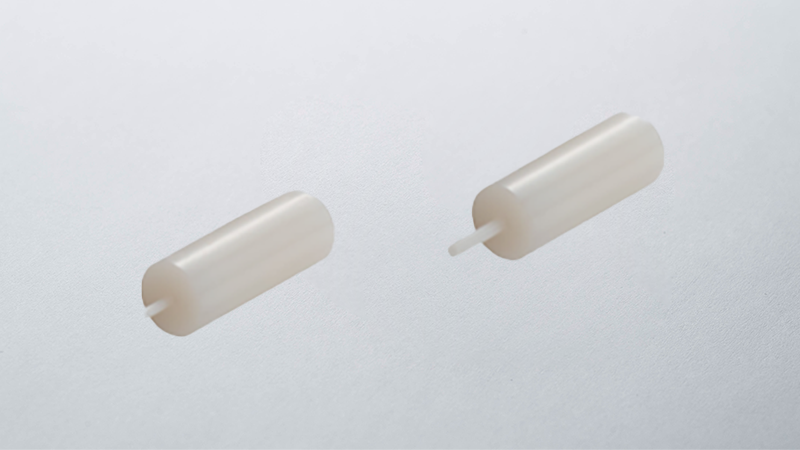

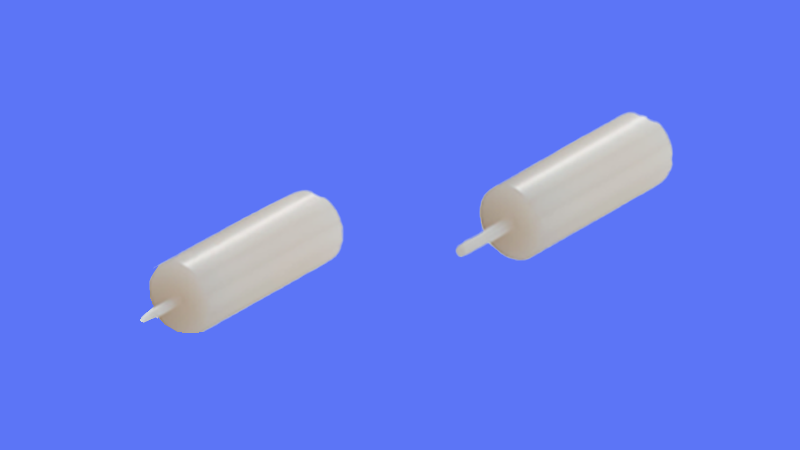

Ferrule and Sleeve
(The ferrule is inserted into the sleeve.)
(The ferrule is inserted into the sleeve.)
