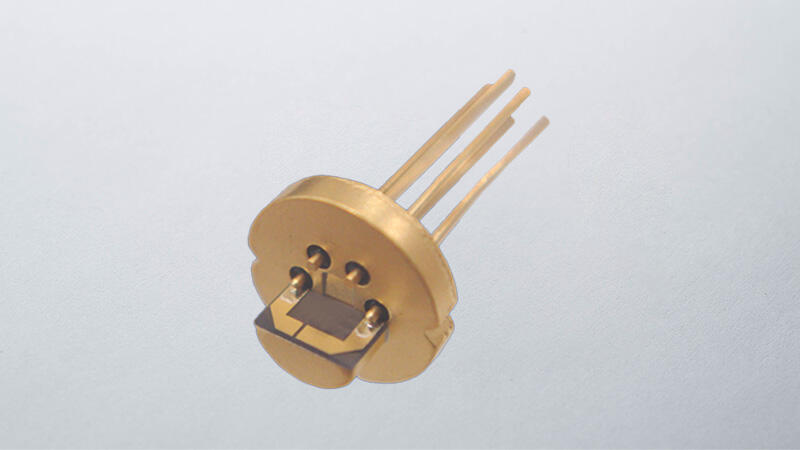

TO-Can / Laser Diode (LD) Packages

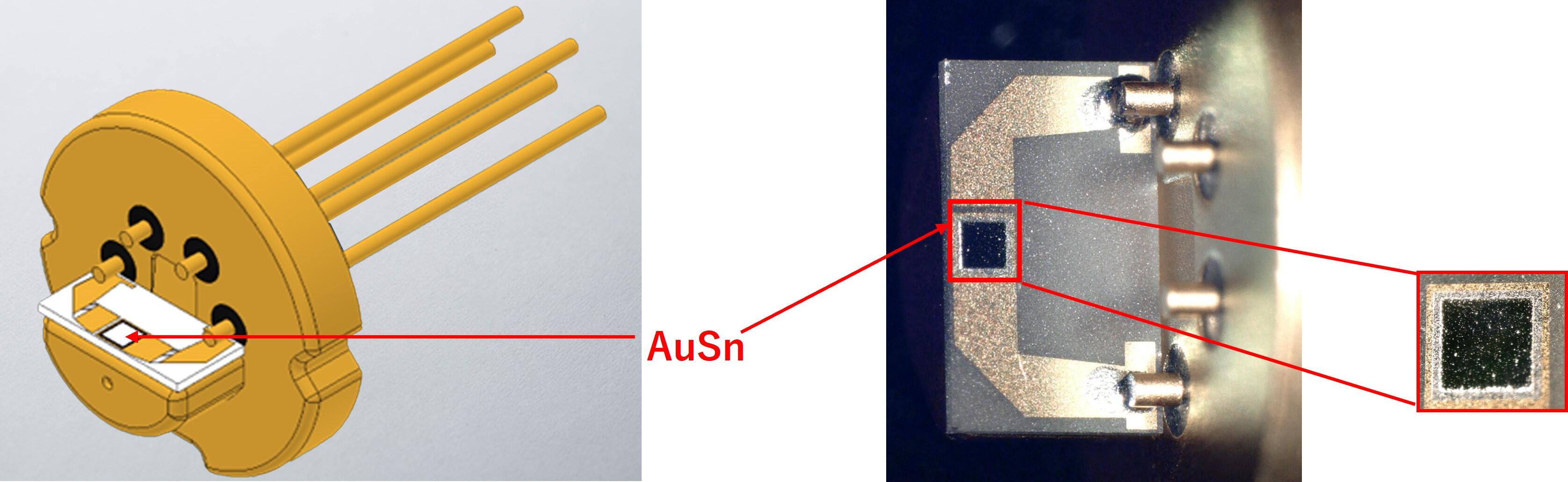

Kyocera offers TO-Can* packages with glass-to-metal bonding and high-frequency RF designs for high-speed fiber-optic communications. Our TO-Can packages are also available with a thin-film submount for laser device mounting.
*TO-Can refers to a "can"-style transistor-outline package
Features
(Entire submount)
TO-Can Packages for EML/DML* Transmission

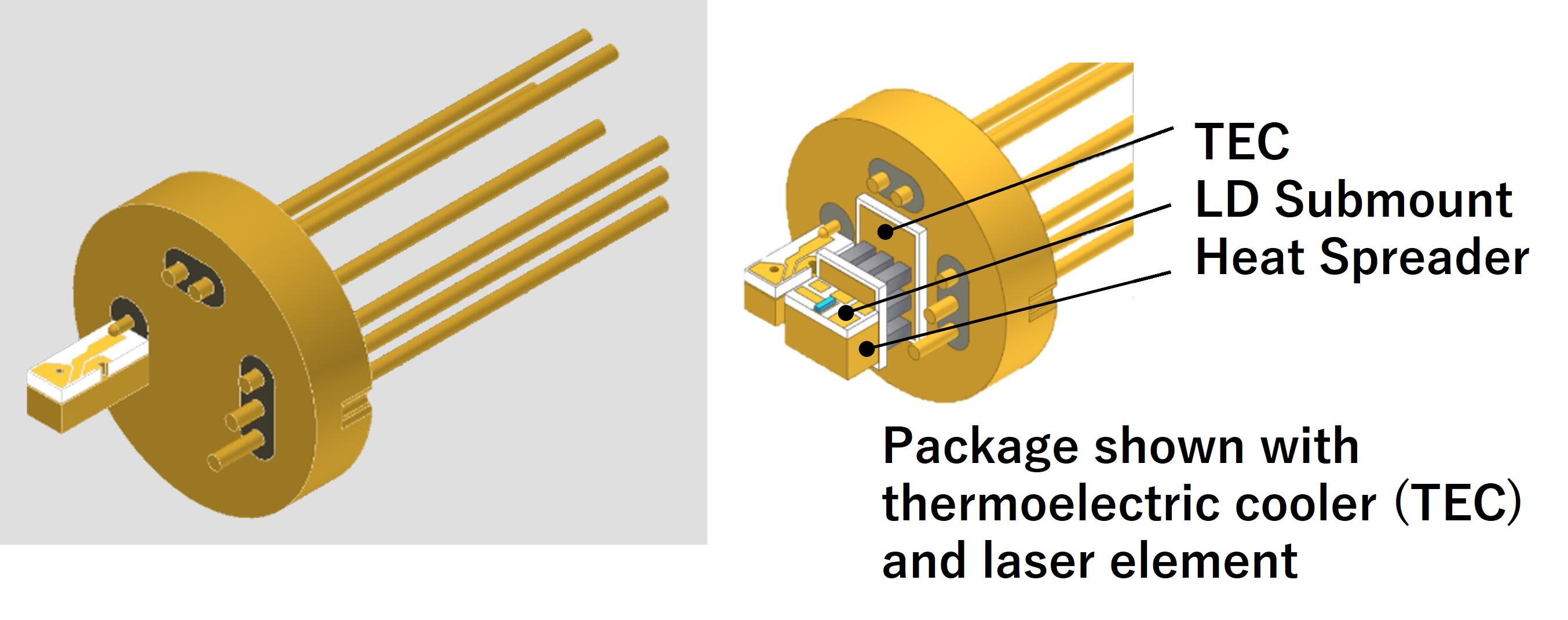

Cooled TO56 Header (for Single-Ended Transmission)
Kyocera’s TO56 packages can be mounted with a thermoelectric cooler (TEC). Input/output terminals can be designed for 50 GHz single-ended transmission lines.
*EML: Electro-absorption Modulated Laser; DML: Directly Modulated Laser.
Cooled TO60 Header (for Differential Transmission)
Kyocera’s TO60 packages can also be TEC-equipped with input/output terminals optimized for 50 GHz differential transmission lines.

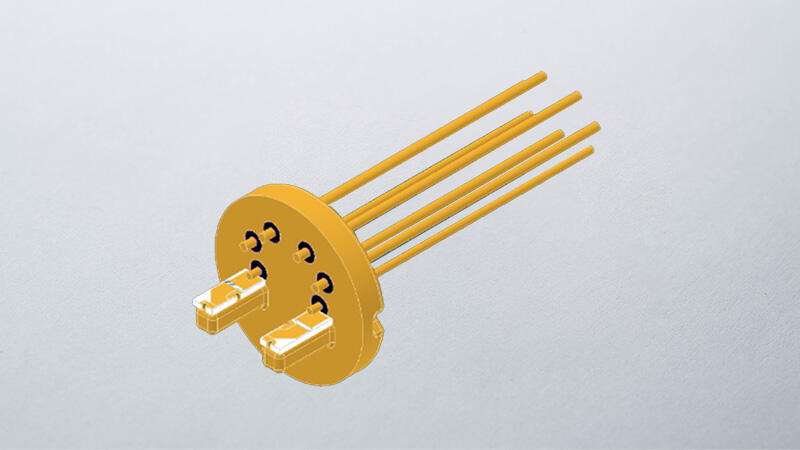

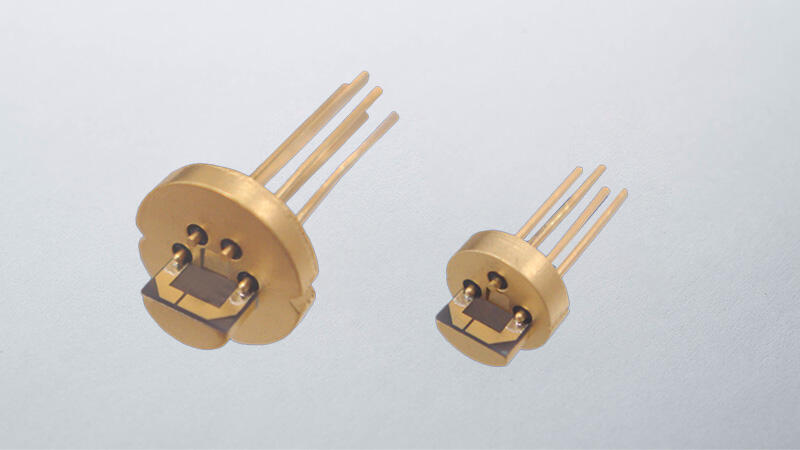

Uncooled TO56 & TO38 Header (for Differential Transmission)
Available in TO56 and TO38 sizes, these laser diode packages feature input/output terminals designed for 50 GHz differential transmission lines.
