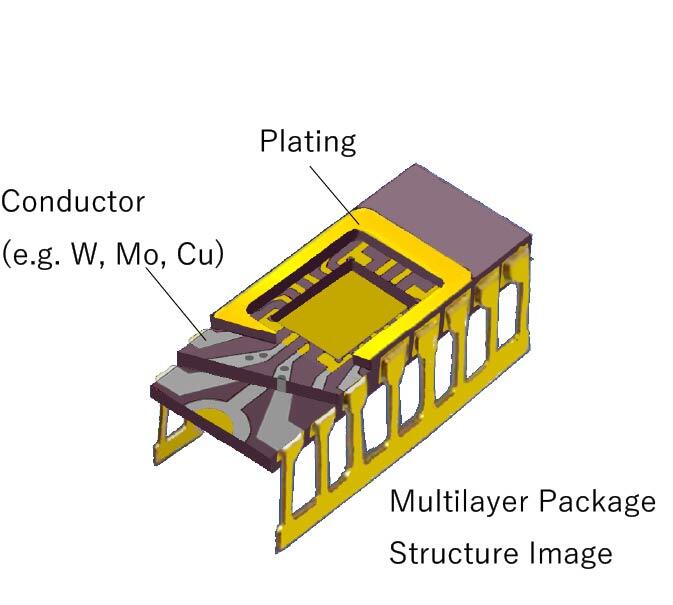

Plating Technologies for Multilayer Ceramic Packages
Kyocera can propose optimal plating specifications, including thickness and processing methods, based on the package design and your assembly methods and processes.
Plating Process Options
- Electrolytic process
- Electroless process
Plating Metal Options
- Ni-Au (standard specification)
- Ni-Pd-Au
Plating Specifications for Thin-Film Packages
Thin-film packages offer more conductor and plating options than co-fired ceramic packages.
Plating Process Options
- Electrolytic process
- Electroless process
Plating Metal Options
- Au
- Ni-Au
- Ni-Pd-Au
- Cu
Optimal plating specifications and methods vary depending on thin-film composition. Please contact us for details.
